TinyJoypad Emulator

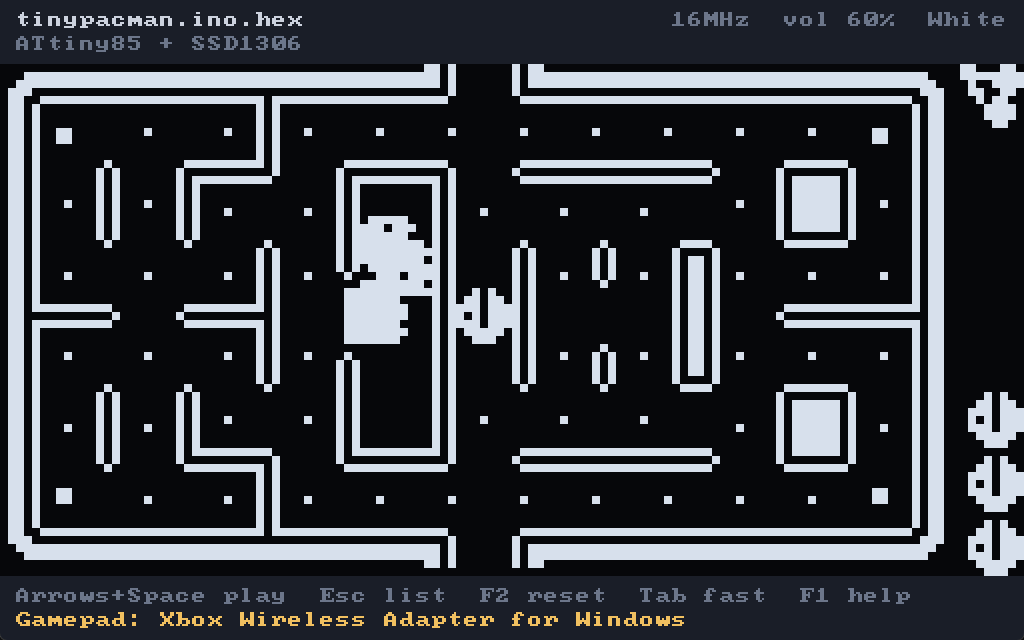

Tiny Pacman running in the emulator

An emulator for the TinyJoypad handheld — an ATtiny85 driving a 128x64 SSD1306 OLED — written in C with SDL3.

It is an emulator, not a re-implementation: simavr executes the real ATtiny85 machine code straight out of a .hex file, and this project models the hardware around the chip. Nothing knows anything about any particular game.

Do note this project was made with the help of claude.ai (Anthropic)

Not an official TinyJoypad project

This emulator is an independent, unofficial piece of software. It runs TinyJoypad games, but it is not affiliated with, endorsed by, or supported by Électro L.I.B (Daniel C.), who created the TinyJoypad and wrote many of the games for it, nor by any of the other authors whose games it happens to run.

Nothing here is their work and nothing here has their blessing. Please do not report emulator problems to them, and do not take anything the emulator does as a statement about how the real hardware behaves — where the two disagree, the hardware is right and this is a bug worth reporting here.

The TinyJoypad itself — schematics, hardware, and the original games — is at tinyjoypad.com. Every game remains the property of its own author under its own licence, which for most of them is GPLv3. No games are distributed with this emulator.

What is emulated

The TinyJoypad rev2 schematic, pin for pin:

                       3V3
                        |
   PB5 / ADC0  <--- 22k-+--[ 88k: left ][ 33k: right ]--- GND
   PB3 / ADC3  <--- 22k-+--[ 33k: up   ][ 88k: down  ]--- GND
   PB1         <--- 10k pull-up, action switch to GND
   PB4         ---> piezo speaker
   PB0         <--> SSD1306 SDA
   PB2         ---> SSD1306 SCL

ATtiny85 — simavr’s core, clocked at 16 MHz (switchable to 8 MHz).
SSD1306 — GDDRAM, all three addressing modes, segment remap, COM scan direction, start line, multiplex ratio, display offset and inversion. The contrast register is decoded and reported in the hardware view, but is not applied to brightness: on the modules these games run on it makes very little perceptual difference, and the collection ships 0x00, 0x3f, 0x7f and 0xcf interchangeably while all of them look white on real hardware.
Panel persistence — the panel is modelled as a surface with rise and fall time constants rather than a buffer sampled once a frame. TinyJoypad games draw straight into the display one page at a time with no back buffer, and several flicker sprites on alternate passes to fake extra shades; sampling that at 60 Hz gives tearing and strobing the real device does not have. The emulator integrates the panel many times per displayed frame instead. F7 turns it off.
The I2C bus — recovered from the PB0/PB2 pin levels the way a logic analyser would, because these games bit-bang it by hand. The emulator drives the ACK bit, so firmware that checks for a NAK behaves correctly.
The USI — some games (Tiny Invaders v4.2, the older TinyDungeon builds) use the ATtiny85’s USI peripheral in two-wire mode instead of bit-banging. Those are handled too; see the note in src/tj_board.c.
The joystick ladders — solved as actual resistor dividers, so pressing two opposing directions at once produces the same out-of-range reading the hardware would, rather than a direction that is impossible on a real unit.
The speaker — PB4 is integrated exactly between audio samples, so the square wave is anti-aliased instead of point-sampled, and DC-blocked the way the AC-coupled piezo is.
The PLL — simavr’s tinyx5 core has no PLL, but the part runs from it at 16 MHz and firmware that enables it spins on PLOCK. Mirrored so that wait terminates, as it does on silicon.

Audio is the master clock: each frame the CPU is run for exactly as many cycles as the audio device still needs samples for, which keeps emulated time locked to real time and the speaker free of gaps.

Building

Both dependencies are vendored as submodules; there is nothing else to install. No avr-gcc is needed, and libelf is not used.

git clone --recurse-submodules <this repo>
cd Tinyjoypad_Emulator
cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build

If you already cloned without --recurse-submodules:

git submodule update --init --recursive

To link an already-installed SDL3 instead of building the vendored one, add -DUSE_VENDORED_SDL=OFF.

Built and tested with GCC 16 (MSYS2 mingw-w64) and CMake 4.4 on Windows 11. The code is written to be portable — SDL3 and simavr both are, the only platform-specific paths are the drive list in the browser and how --help and argument errors are reported (see below) — but it has not yet been built on Linux or macOS, so expect to shake out a wrinkle or two there.

Usage and error messages go to the terminal and, when there is no terminal to print to, to an SDL_ShowSimpleMessageBox dialog. On Windows that is always, because this is a windowed binary with no console; on Linux and macOS the dialog appears only when the program was started from a file manager or the dock rather than a shell.

Running

./build/Tinyjoypad_Emulator                  # opens the .hex browser
./build/Tinyjoypad_Emulator path/to/game.hex # boots straight into a game

You can also drag a .hex file onto the window.

Command line

Usage: Tinyjoypad_Emulator [options] [game.hex]

  -f, --fullscreen   Start fullscreen
  -w, --windowed     Start windowed, ignoring the saved setting
  -s, --size WxH     Window size in pixels, e.g. 1280x800 (minimum 256x160)
      --scale N      Window size as N times the 512x320 logical size (1-16)
  -r, --rotate       Start with the screen flipped 180 degrees
      --no-rotate    Start unflipped, ignoring the saved setting
  -h, --help         Show this message

--size and --scale both accept --opt value or --opt=value, and the last one given wins. Because the whole interface is drawn at a fixed 512x320 and letterboxed, --scale is usually the one you want: --scale 3 gives a 1536x960 window with the OLED at exactly 12 real pixels per emulated one.

Size, fullscreen and rotation given on the command line apply to that run only — they do not overwrite the settings saved from the emulator itself, so --fullscreen for one session will not leave you fullscreen the next time.

./build/Tinyjoypad_Emulator --fullscreen "more games/Tiny Pacman/tinypacman/tinypacman.ino.hex"
./build/Tinyjoypad_Emulator --scale 3
./build/Tinyjoypad_Emulator --size 1280x800 --windowed
./build/Tinyjoypad_Emulator --rotate "more games/Tiny Mania/TinyMania/TinyMania.ino.hex"

Controls


Move	Arrow keys or WASD, gamepad d-pad or left stick
Action button	Space, Z, X, Enter, Ctrl — or gamepad A / B
Back to the list	`Esc`, or gamepad Start (`Esc` again resumes)
Flip screen 180°	`F8`, or gamepad Y
Pause / fast-forward	`P` / hold `Tab`
Reset	`F2`
Clock 8 / 16 MHz	`F5`
Panel colour	`F6`
Panel persistence	`F7`
Screenshot (native 128x64)	`F10`
Hardware view	`F12`
Fullscreen	`Alt`+`Enter` or `F11`
Volume	`+` / `-`
Help	`F1`

Gamepads are hot-pluggable and up to eight can be used at once; they also drive the browser (d-pad to move, A to open, B to go up a folder).

The TinyJoypad has exactly one action switch, so only A and B fire. X, the shoulders and Select are left unbound on purpose — on a one-button console they are worth far more as emulator controls than as extra ways to press the same switch.

Which way up?

Not every game is drawn for the same orientation. Some builds assume the board mounted the other way round and come out upside down — TinyMania is one. F8 (or Y on a gamepad) flips the panel 180°, which is a horizontal plus a vertical flip, and the setting is remembered. Screenshots come out the same way up as the screen. When it is on, the header shows 180.

In fullscreen a running game gets the whole display: the title and hint bars are windowed-mode furniture and are dropped, leaving only the panel, letterboxed to its own 2:1 shape rather than stretched. Messages such as Clock: 8 MHz still appear briefly along the bottom, then disappear again. The browser keeps its chrome in fullscreen, since it needs it.

Saved games

Several games keep high scores or progress in the ATtiny85’s 512 bytes of EEPROM, which survives a power cycle on real hardware. The emulator gives them the same: the EEPROM is mirrored to a file named after the game, so tiny-tris_v3.ino.hex saves to tiny-tris_v3.ino.eeprom beside it.

This is entirely automatic — read back when the game starts, written out as you play. There is no save key and nothing to remember. Writes are coalesced and land about a second after the game stops touching its EEPROM, so a save is safe even if the emulator is killed rather than closed.

A file is only created once a game actually writes to its EEPROM, so browsing through a folder of games does not scatter save files around. Reset (F2) keeps the EEPROM, just as resetting the real hardware does.

The file is a raw dump, one byte per EEPROM byte — not Intel HEX, so it is not directly flashable with avrdude. A short file is padded with 0xff, which is what erased EEPROM reads as.

Games that use it include Tiny Tris, Tiny Invaders v4.2, obono’s Test Tool and several of the attiny-arcade titles; the list is not exhaustive, since a game may only write its EEPROM on game over.

The .hex browser

TinyJoypad games tend to live scattered deep inside source trees, so as well as ordinary folder navigation the browser has a recursive mode (F4, or Ctrl+R) that collects every .hex beneath the current folder into one flat list, labelled by relative path. Point it at a checkout of a game collection and it becomes a playable menu. Type any text to filter the list; F3 opens the system file dialog instead.

Window size, last folder, volume, clock, colour and the rest are remembered between runs.

Clock speed

Which clock a game was built for is not recorded in a .hex file. TinyJoypad rev2 runs the ATtiny85 at 16 MHz, which is the default and correct for essentially everything. If a game runs at double or half speed, F5 switches to 8 MHz and restarts it.

Files that are not TinyJoypad games

Collections often mix in builds for other boards. Anything too large for the ATtiny85’s 8 KB of flash is rejected with an explanation rather than crashing — an Arduboy build of the same game, for instance, is around 18 KB.

Where to get games

No games ship with this emulator. A game is a single .hex file — the compiled ATtiny85 firmware — and you either download one or build it yourself.

Download

Where	What is there
tinyjoypad.com/tinyjoypad_attiny85	The main catalogue. Daniel C.’s own games — Tiny Pacman, Tiny Invaders, Tiny Arkanoid, Tiny Bert, Tiny Pinball and many more — plus contributed titles, each with source, a `.hex` and a video. Note that the page also lists “other projects” that are not TinyJoypad-compatible.
github.com/Lorandil	TinyDungeon (a full dungeon crawler), TinyMinez (Minesweeper), and Tiny-invaders-v4.2 (a reworked Tiny Invaders v3.1). Also worth a look if you want to write your own: OLED_sprites, Cross-Development-for-TinyJoypad and the ATTiny85 optimization guide.
obono/TinyJoypadWorks	Four titles: Test Tool (OBN-T00), Hollow Seeker (OBN-T01), Number Place (OBN-T02) and 2048 (OBN-T03).
tscha70/TinyLanderV1.0	Tiny Lander, a Lunar Lander for the ATtiny85 at 16 MHz.
note.com/kondolab	Kondo Lab’s Japanese-language build logs for games written with AI assistance, including TinY Fi, a fighting game with six stages and boss fights, and TinyRoG, a 30-floor roguelike with procedurally generated mazes. See also the project overview and the roguelike development diary.

Build your own

Most of these projects publish their source as an Arduino sketch, so you can compile your own .hex — handy for tweaking a game, and the only option when a project ships source but no binary.

The stock Arduino IDE cannot target an ATtiny85, so install ATTinyCore by adding this to File → Preferences → Additional Boards Manager URLs:

http://drazzy.com/package_drazzy.com_index.json

Then set, under Tools:


Board	ATTinyCore → ATtiny25/45/85 (No bootloader)
Chip	ATtiny85
Clock Source	16 MHz (PLL) — internal, no crystal
LTO	Enabled — you need it to fit in 8 KB
millis()/micros()	Enabled, unless the game says otherwise

Sketch → Export Compiled Binary (Ctrl+Alt+S) then writes the .hex next to the sketch, and that file loads straight into this emulator. That is where the *.ino.hex files you find in these repositories come from.

If you also want to flash a real TinyJoypad, program it with an Arduino as ISP and burn the bootloader once first — on a “No bootloader” board that only writes the fuses, but without it the chip stays on its factory 1 MHz and every game crawls. Upload with Sketch → Upload Using Programmer, not the normal Upload button.

Do not select Arduino Uno to build for a TinyJoypad. The ATtiny85 is a different core with no hardware multiplier and a different register map, and several of these sketches deliberately compile a completely different Uno-with-an-OLED variant when they see an ATmega — useful for debugging on an Uno, but not a TinyJoypad binary.

Layout


`src/tj_board.c`	the ATtiny85 and everything wired to its pins
`src/tj_ssd1306.c`	the display controller and the panel model
`src/tj_i2c.c`	bit-banged I2C recovered from pin levels
`src/tj_browser.c`	the `.hex` browser
`src/tj_ui.c`, `src/tj_config.c`	drawing helpers, saved settings
`src/main.c`	window, audio, input, main loop
`simavr_config/`	the two headers simavr normally generates at build time

Licence

simavr and SDL3 keep their own licences (GPLv3 and Zlib respectively). Note that linking simavr makes the resulting binary GPLv3 so this whole project is GPLv3.
